2026 Rockwood Mini Lite 2509S review: the bunkhouse with a Murphy bed, and the Fords that can really tow it

The 2026 Rockwood Mini Lite 2509S is the Mini Lite for families who don’t want to give up a real living room to get bunks. It’s 25′ 11″ long and sleeps up to eight. Up front, a queen Murphy bed folds away over the sofa during the day. In the back, two double-size bunks. In the slide, a U-shaped dinette.

The number I want you to remember is the GVWR: 6,933 lbs. That’s what this trailer is allowed to weigh fully loaded, and it’s the number I use for every truck match. The 2509S lands in a tricky spot. It’s heavy enough that a Ranger looks fine on paper and isn’t. It’s light enough that people assume any F-150 is overkill, and that isn’t quite true either.

I sold trailers before I sold Fords, so I look at this one from both ends of the hitch. Below are the specs, what it really weighs when you camp, which Fords tow it well in Arizona, and what to check before you sign.

2026 Rockwood Mini Lite 2509S specs at a glance

Specs from Forest River’s published 2026 data as listed by RVGuide and dealer spec sheets. Some sites list the gray and black tanks at 30 gallons. The yellow sticker on the actual trailer is the final word.

Walking through the 2509S floor plan, front to back

When I walked through the 2509S on our lot in Dewey, the first thing I noticed was how open the middle of the trailer feels for a bunkhouse this size. Here’s how it lays out.

Front: sofa by day, queen bed by night

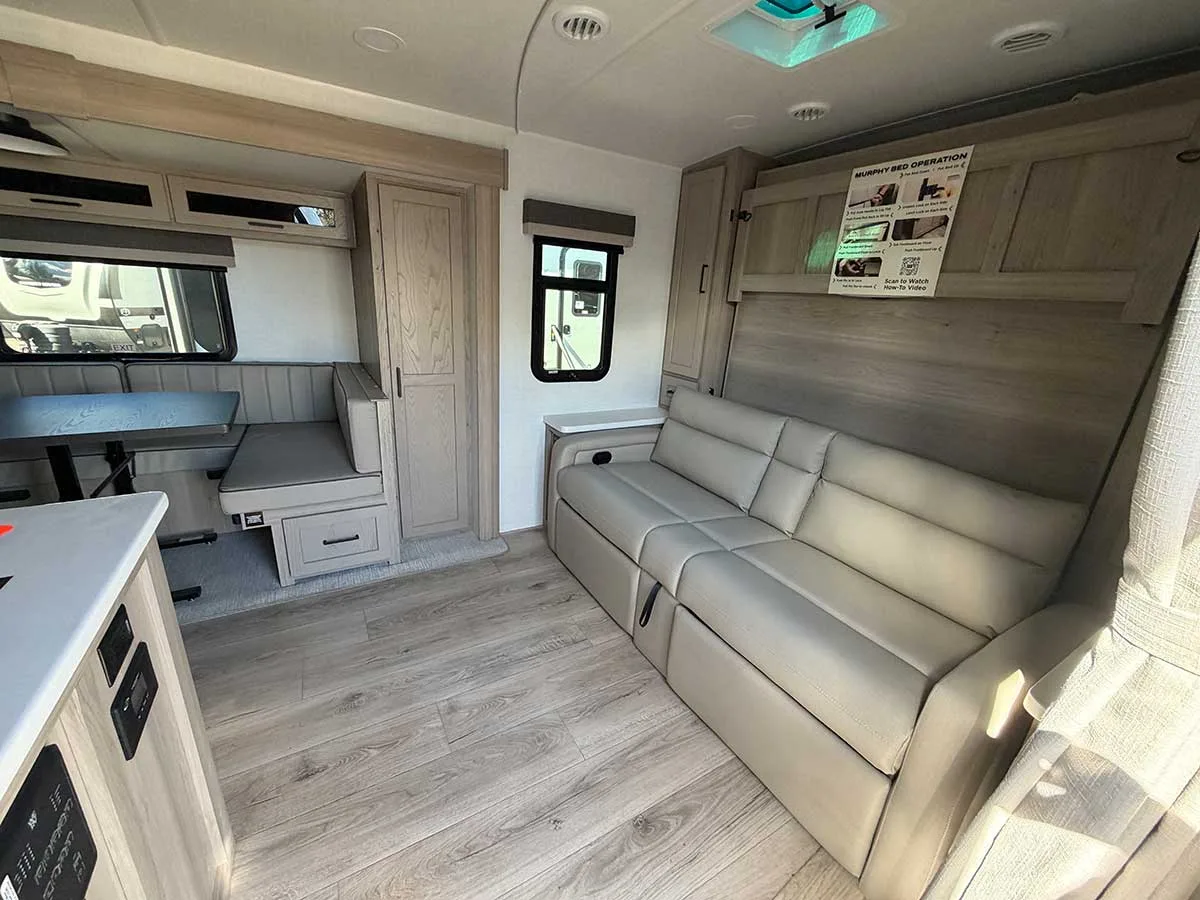

The front wall is a 72″ sofa with an RV queen Murphy bed folded up behind it. Tall wardrobe cabinets sit on each side. Putting the bed down takes a few steps: lay the sofa back flat with the grab handle, unlatch a lock on each side, pull the footboard down to the floor and set the locking pin. There’s a pinch-point warning on the instruction card, and it’s there for a reason. Keep little fingers clear.

The trade-off: when the bed is down, the living room is gone. If one person goes to bed early, the other is sitting at the dinette.

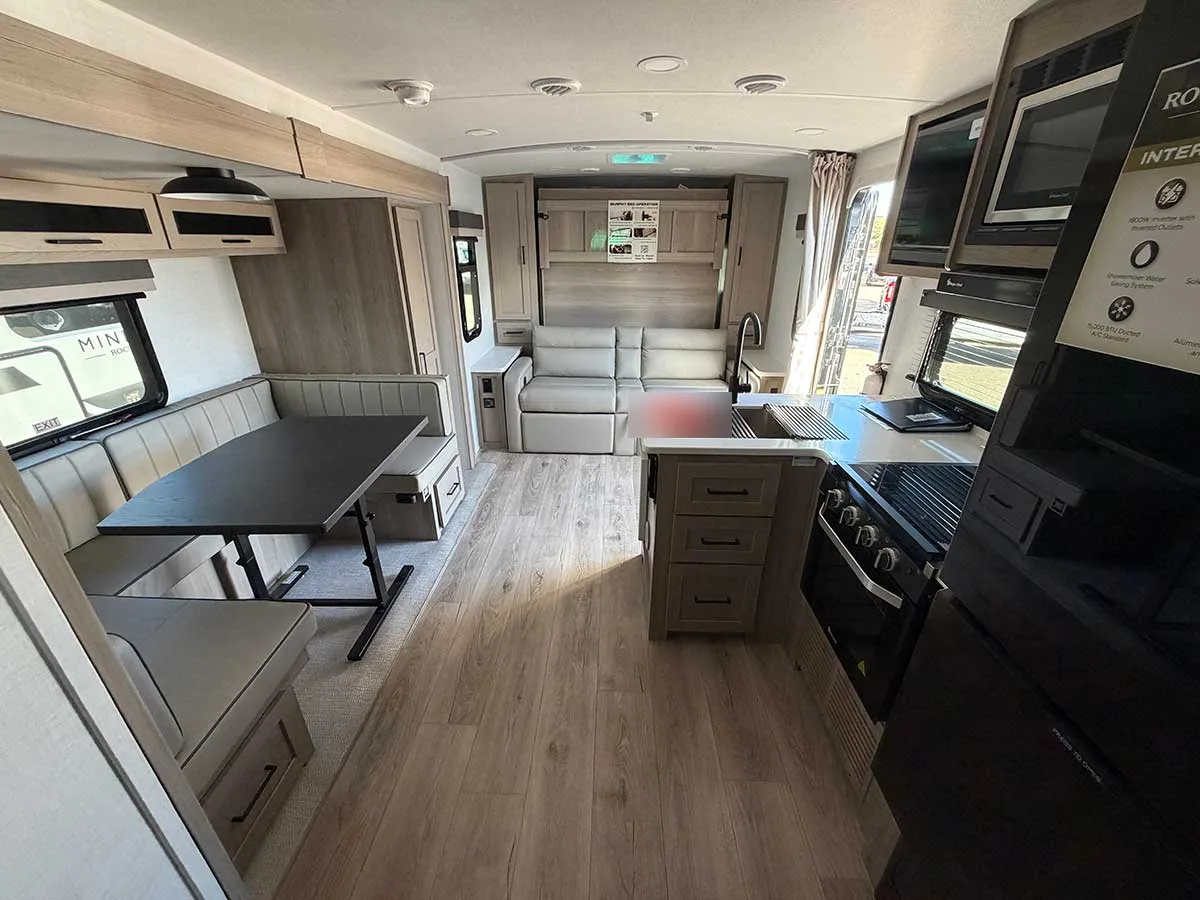

Middle: kitchen by the door, dinette in the slide

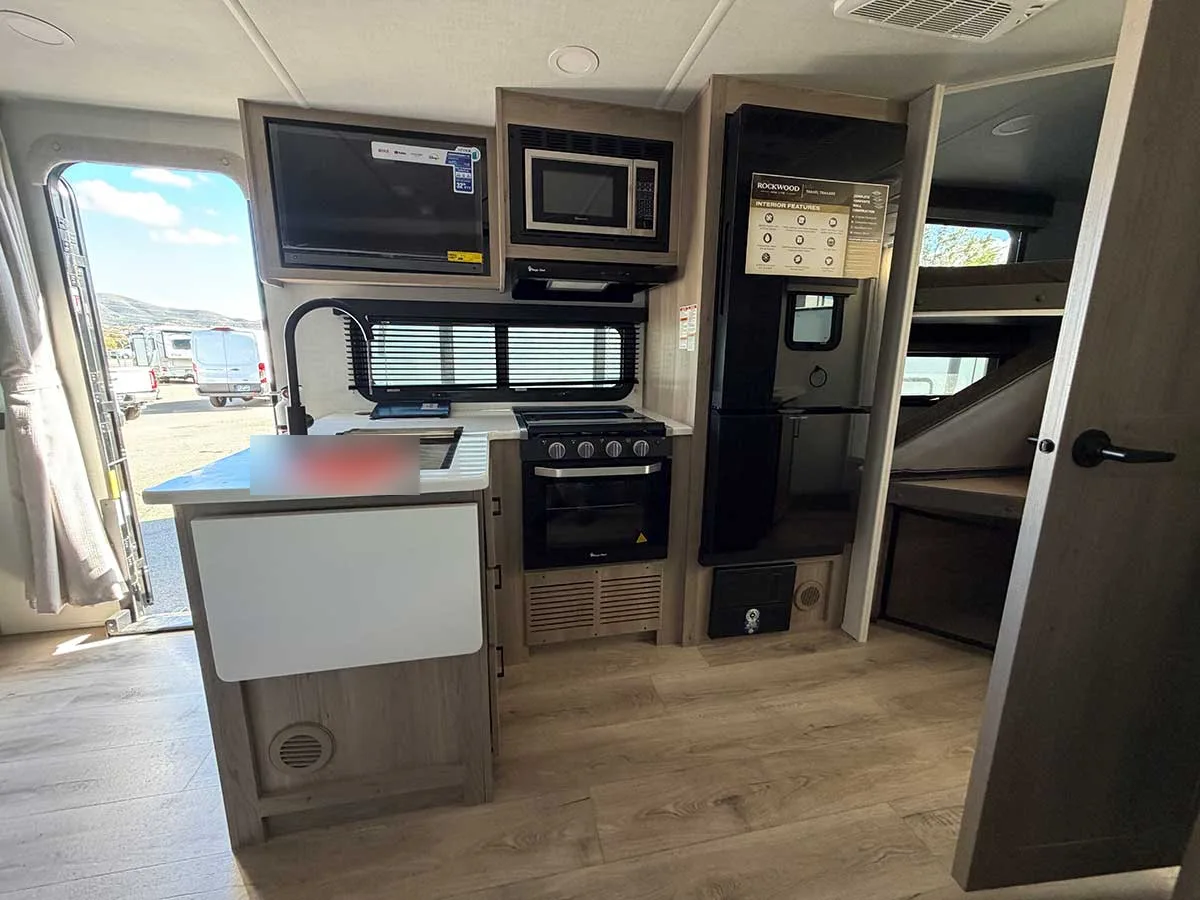

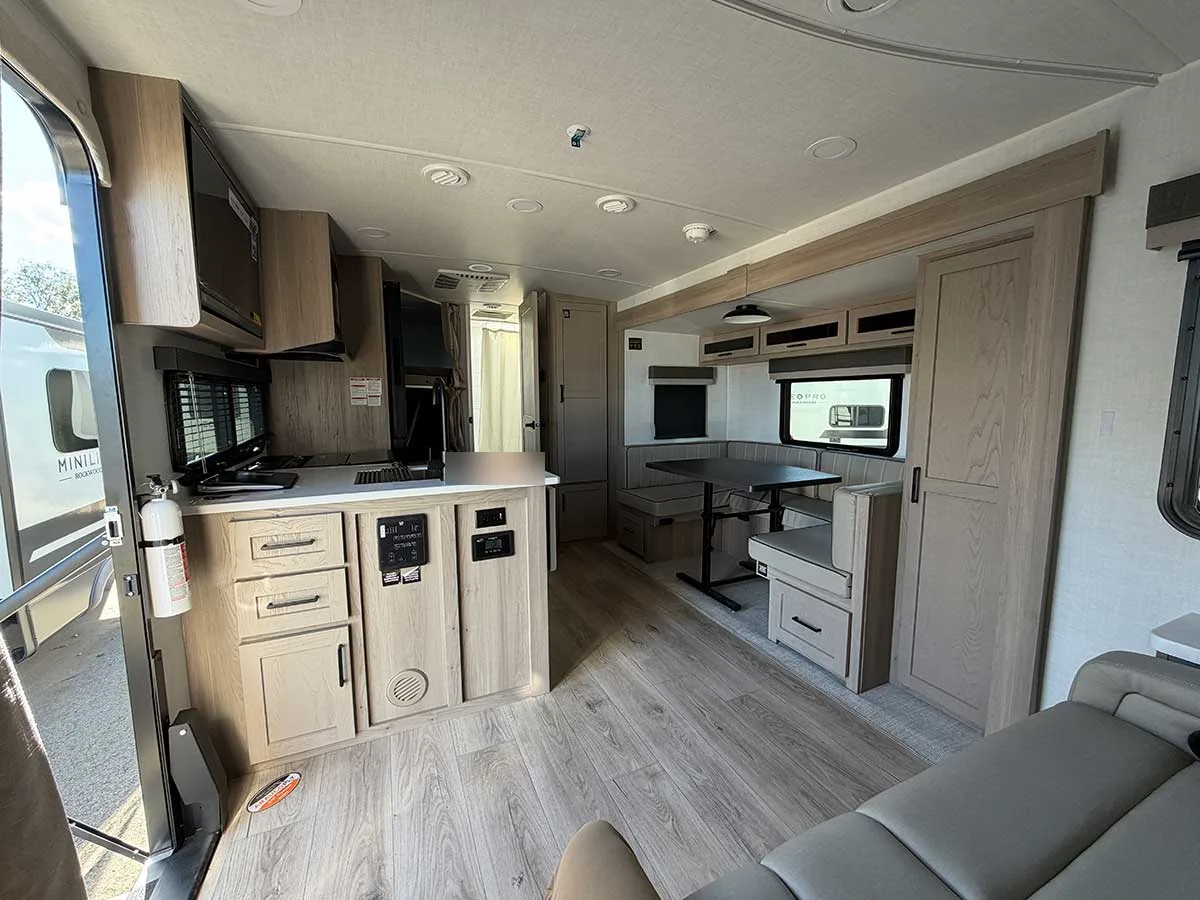

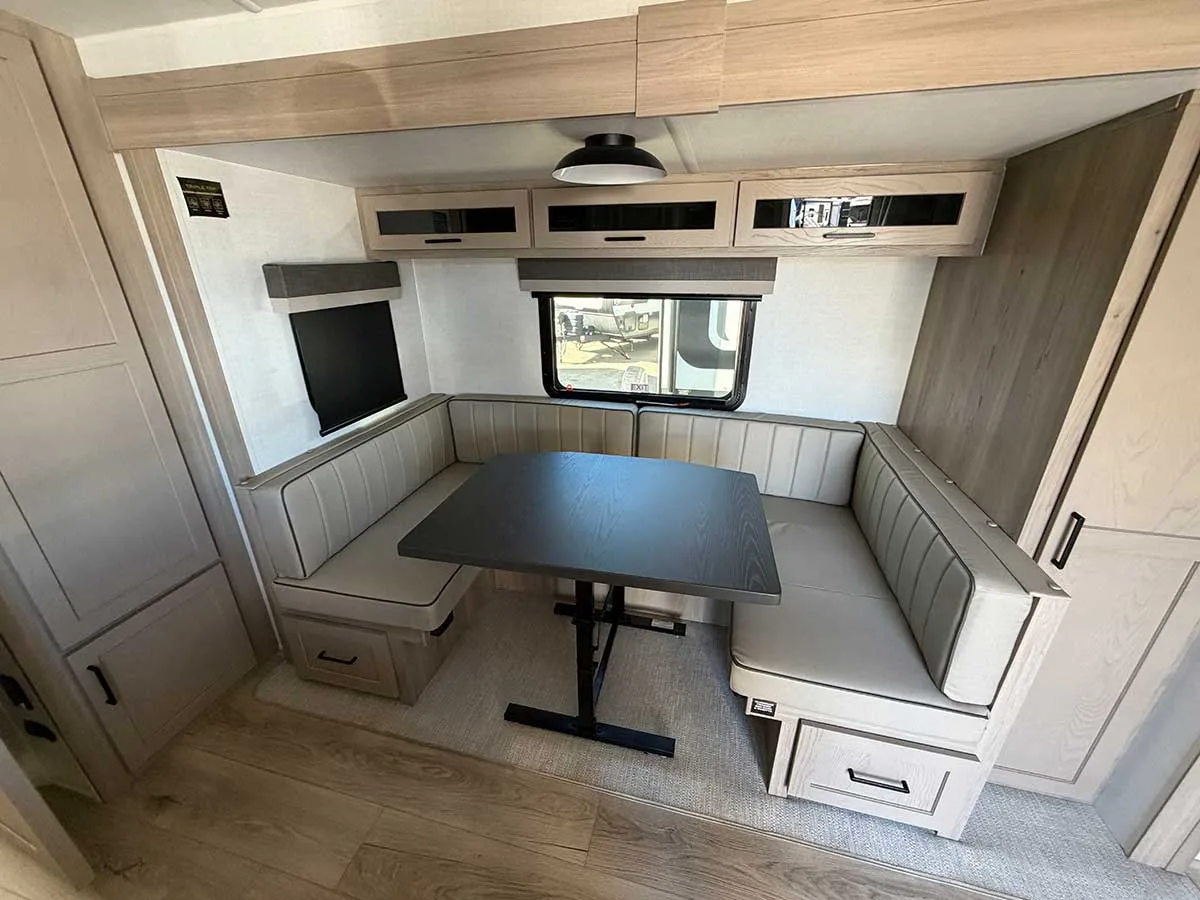

You walk in near the kitchen. The sink sits right by the entry door, with a three-burner cooktop, gas oven, microwave and a tall 12-volt fridge along the same wall. The TV is mounted on that wall too. Across the aisle, the slide holds a U-shaped dinette with drawers under the seats and cabinets overhead. A pantry-style cabinet sits next to it.

I like that the kitchen sits in the middle. Someone can make coffee in the morning without stepping over a bed.

Rear: bunks and the bathroom

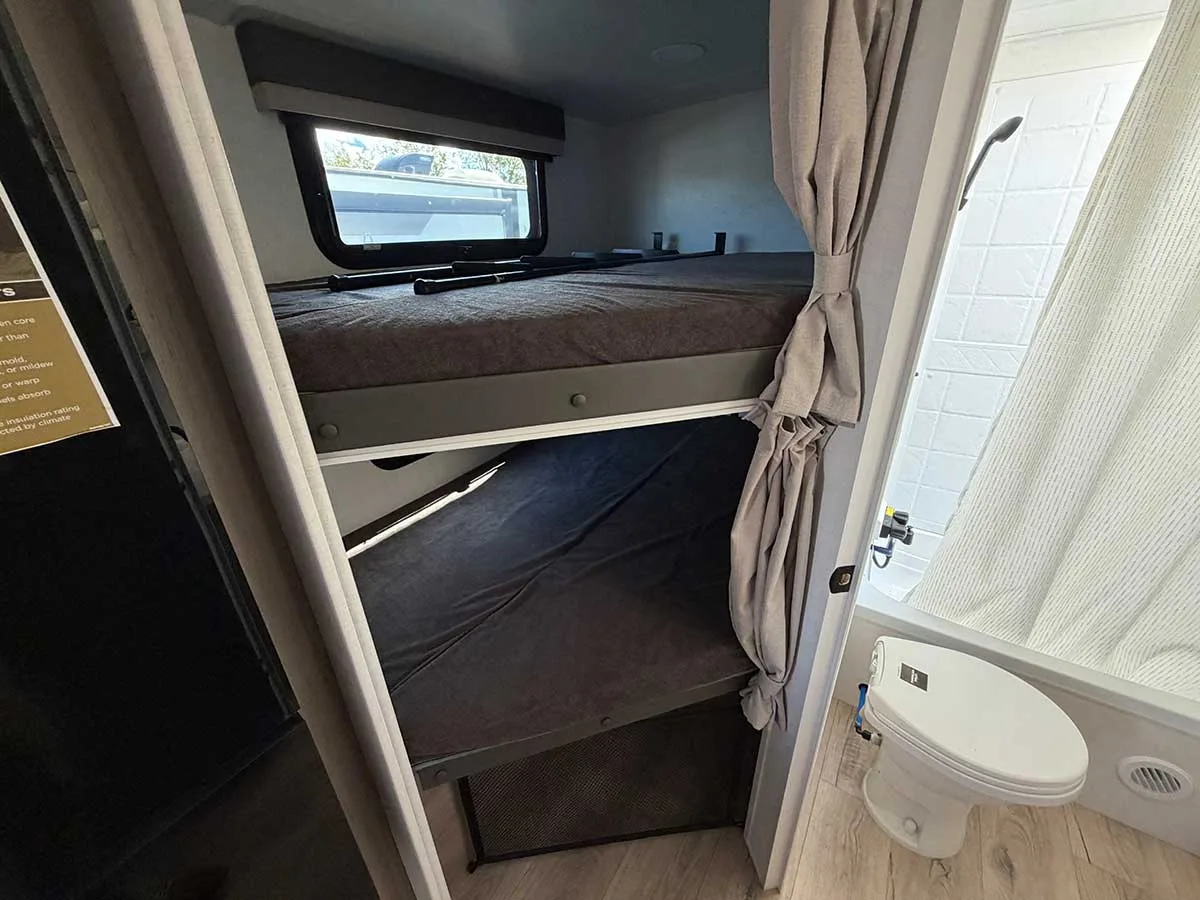

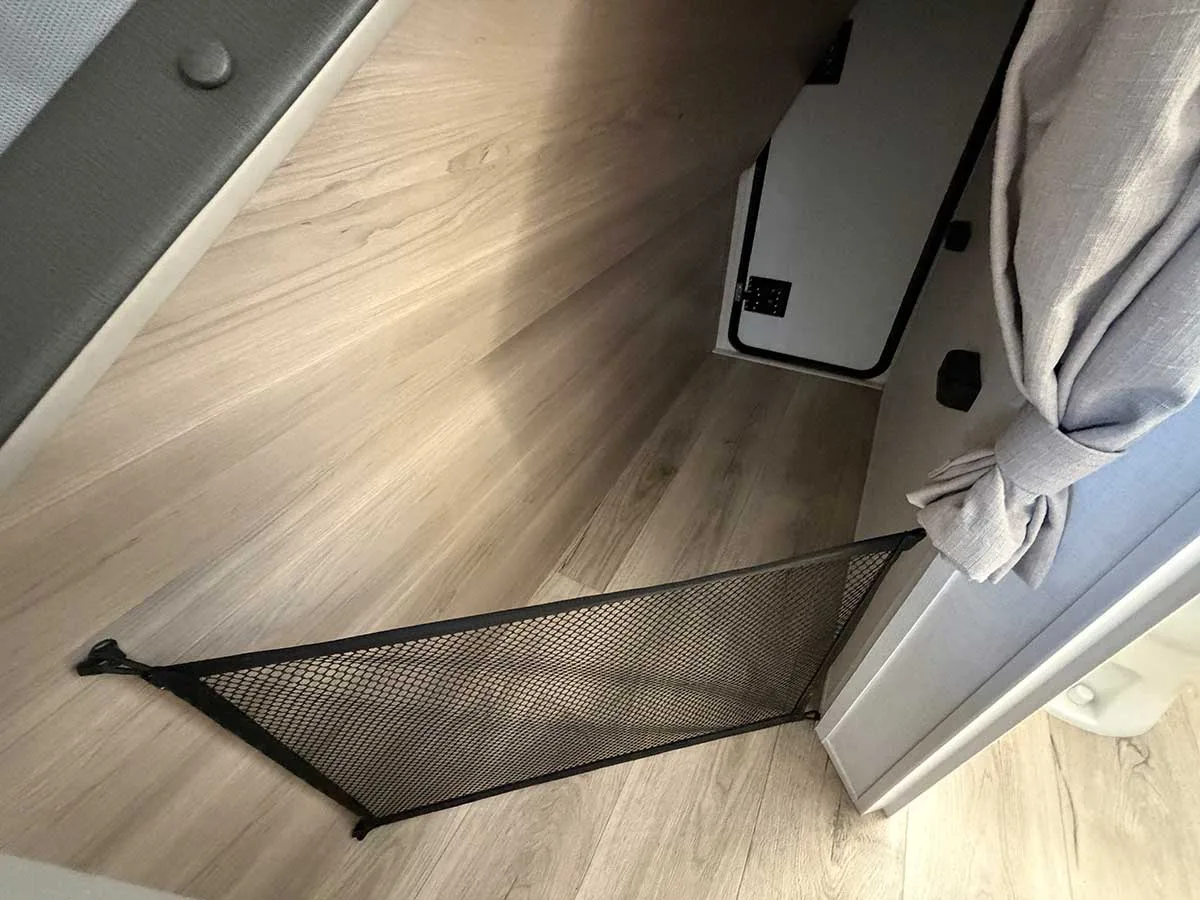

The back corner has two bunks stacked one over the other. Forest River calls them double-size bunks, and one owner reported them at about 48″ by 72″. Under the lower bunk there’s open floor space with a cargo net and an outside access door, so bikes, chairs or a cooler can live there and load from outside.

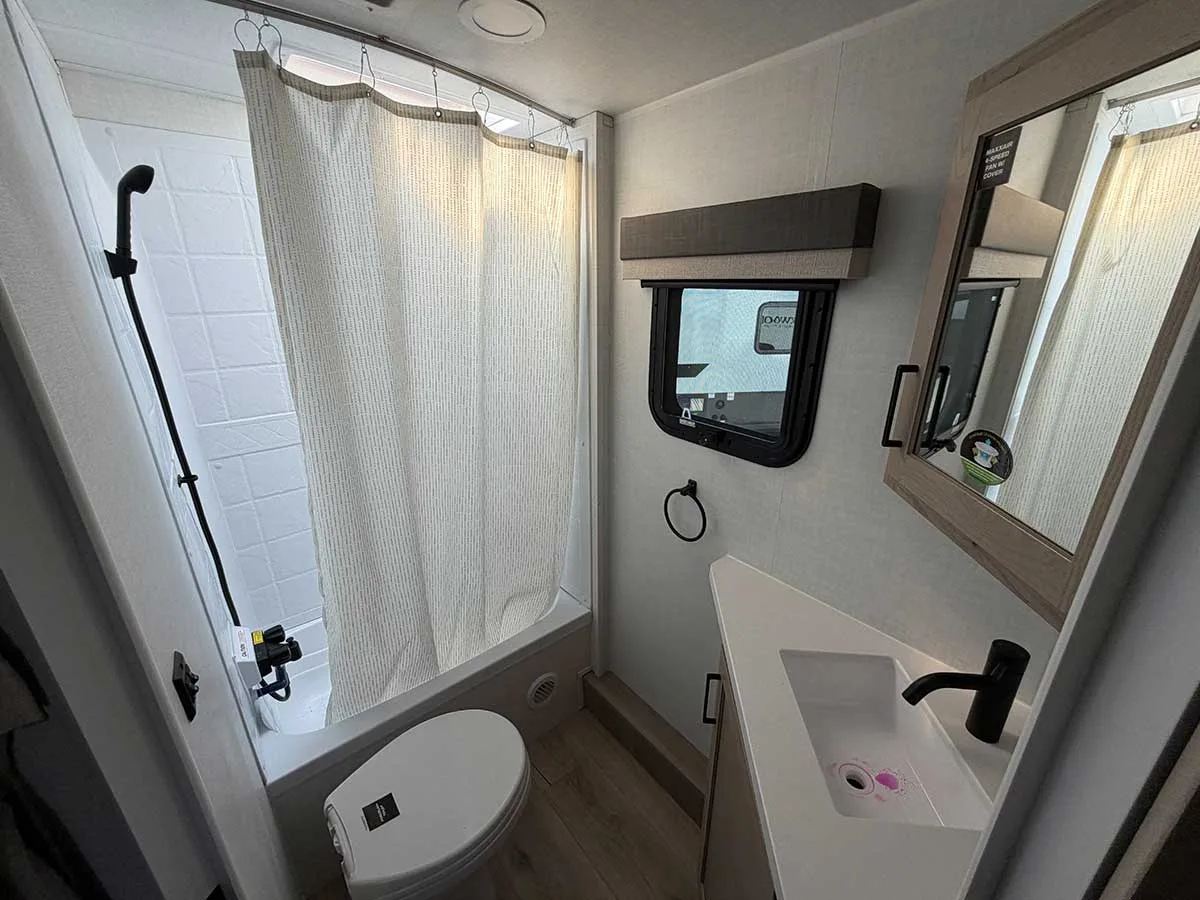

The bathroom is in the other rear corner with a tub-style shower and curtain, toilet, vanity, medicine cabinet, window and a vent fan. It’s a real bathroom, not a wet bath.

One thing to think about: the queen bed is at the front and the bathroom is at the back. Late-night bathroom trips mean walking the full length of the trailer past the kids.

What the 2509S really weighs when you go camping

Dry weight is the trailer with nothing in it. Nobody camps like that. Here’s how fast the 1,434 lbs of cargo capacity disappears for a typical family trip.

Estimates. Forest River’s UVW includes LP gas but not water, batteries or dealer-installed accessories. Your trailer’s exact UVW and CCC are on its yellow sticker.

That 316 lbs isn’t much margin for a trailer that sleeps eight. The fix is simple: tow with the fresh tank empty and fill at the campground. That drops the loaded weight to about 6,169 lbs and leaves roughly 764 lbs of capacity for the extra stuff families always bring.

One more thing a brochure won’t tell you. Dealer add-ons count against CCC too. A second battery, a bigger lithium setup or an optional second AC all come out of the same 1,434 lbs.

Which Ford can tow the Rockwood Mini Lite 2509S?

I use GVWR, not dry weight, and I like to see the trailer at or under about 80% of the truck’s tow rating. For the 2509S, that means a rating of roughly 8,700 lbs or more.

Max ratings apply only to specific cab, axle and package combinations. Your truck’s actual rating may be lower. Check the towing guide for your exact build.

The Explorer, Bronco, Ranger Raptor and Maverick all have tow ratings below this trailer’s GVWR, so they’re off the list.

Payload is where most trucks really run out

Tow rating gets the attention, but payload is the limit people hit first. Everything the truck carries counts: the trailer’s tongue weight, the hitch, your family and whatever is in the bed. I estimate tongue weight at 13% of GVWR, which is about 901 lbs for the 2509S.

Estimates. Family of four assumes two adults (350 lbs) and two kids (150 lbs combined).

Now compare that to real trucks. A Ranger SuperCrew 4x4 with the 2.3L carries about 1,763 lbs, which leaves only 112 to 262 lbs of margin. The 2.7L Ranger is rated around 1,375 lbs, so it’s over before you leave the driveway. A 2.7L F-150 tops out near 1,775 lbs in its best configuration, and many crew cabs with the nicer options carry less. That’s why the 2.7L is a “works, with limits” truck here.

The Expedition has plenty of tow rating, but it’s also the vehicle most likely to be full of people. Run the family-of-four math against its door sticker before you assume it’s fine.

If you’re not sure where your truck lands, send me a photo of your door-jamb sticker and I’ll do the math with you. You can also see the full rating breakdowns in my 2026 F-150 towing guide and 2026 Ranger towing guide.

Towing and camping the 2509S in Arizona

Altitude and long grades

Prescott sits around 5,400 feet and Flagstaff near 7,000. Naturally aspirated engines lose power as you climb, and a common rule of thumb is about 3% per 1,000 feet. The turbocharged EcoBoost engines hold their power much better up high, which is one reason I like the 3.5L EcoBoost F-150 for this trailer if you live up here.

The 2509S is almost 11 feet tall and 8 feet wide, so there’s a lot of trailer pushing against the wind. On the long climb up I-17 toward Sunset Point or up Yarnell Hill on 89, expect to slow down and watch transmission temperature. Coming down, use tow/haul mode and let the engine brake help. The trailer has electric brakes, but on a long grade you don’t want them doing all the work.

Summer heat

The 2509S comes with one 15,000 BTU ducted AC. In Prescott or Flagstaff summers, that’s plenty. In Phoenix in July, one AC in a 26-foot trailer with a slide and a big front windshield will run hard and still fall behind in the afternoon. Close the shades on the front windshield and the dinette window, park nose-out of the afternoon sun if you can, and run the AC before the trailer heat-soaks. Forest River lists a second AC as optional “where applicable,” so ask whether it’s available on the 2509S if you camp in the low desert.

The 12-volt compressor fridge is a plus here. Older absorption fridges struggle in high heat. Compressor fridges hold temperature much better, but they draw battery power around the clock.

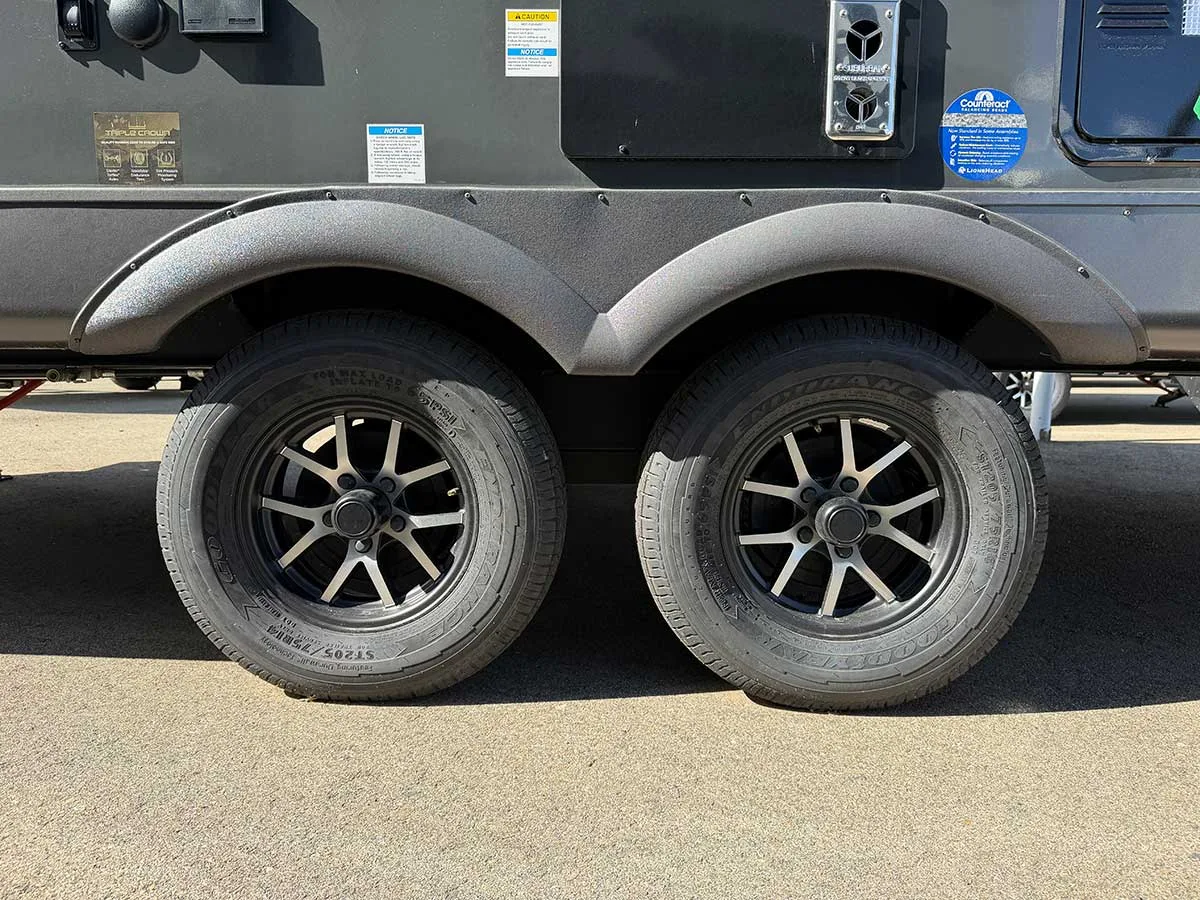

Tires matter on hot pavement. The trailer comes with nitrogen-filled Goodyear Endurance tires and a tire pressure monitor, which is a good setup. Set pressure cold, before you leave, to the number on the sidewall, and check the date code on any trailer you buy.

Dry camping on public land

The 54-gallon fresh tank is generous for this size. At a conservative 4 to 5 gallons per person per day, a family of four uses 16 to 20 gallons a day. That’s about three days of fresh water. A couple can stretch it to five or six days.

The 29-gallon gray tank is the real limit. Dishes and showers all go there, so a family will often fill gray before fresh runs dry. Plan short showers or use campground facilities when you can.

For power, the 200-watt solar panel and 1,800-watt inverter are a good start, but the specs don’t list a battery, so what you get depends on what’s installed. In Arizona sun, a 200-watt panel might put back roughly 700 to 900 watt-hours on a clear day (my estimate). That’s enough to help keep up with a 12-volt fridge and lights if you have a lithium battery. With a small lead-acid battery, the fridge alone can drain it overnight. The inverter will not run the air conditioner. For AC off-grid, you need a generator.

Dust and monsoon season

The dinette slide has a flat roof that collects leaves, dust and monsoon rain. Slide toppers are an option, and I’d get them in Arizona. Wipe the slide seals down after dusty trips so grit doesn’t wear them out.

What I like, and what I’d want you to know

What I like

• Sleeps eight in under 26 feet, without giving up a sofa.
• Real double-size bunks, not narrow kid-only bunks.
• Under-bunk storage with an outside door for bikes and gear.
• Big 54-gallon fresh tank for this size.
• 12-volt compressor fridge, 200W solar and an 1,800W inverter standard.

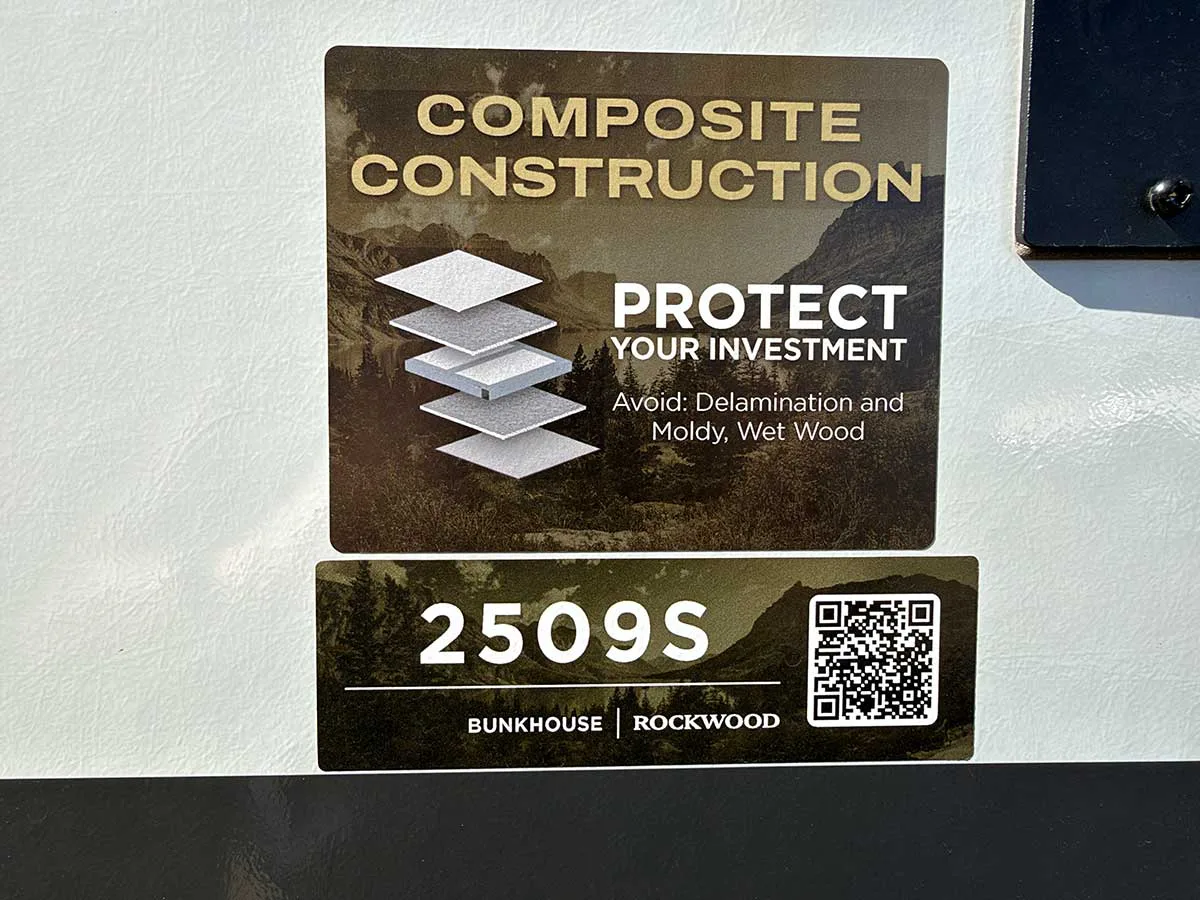

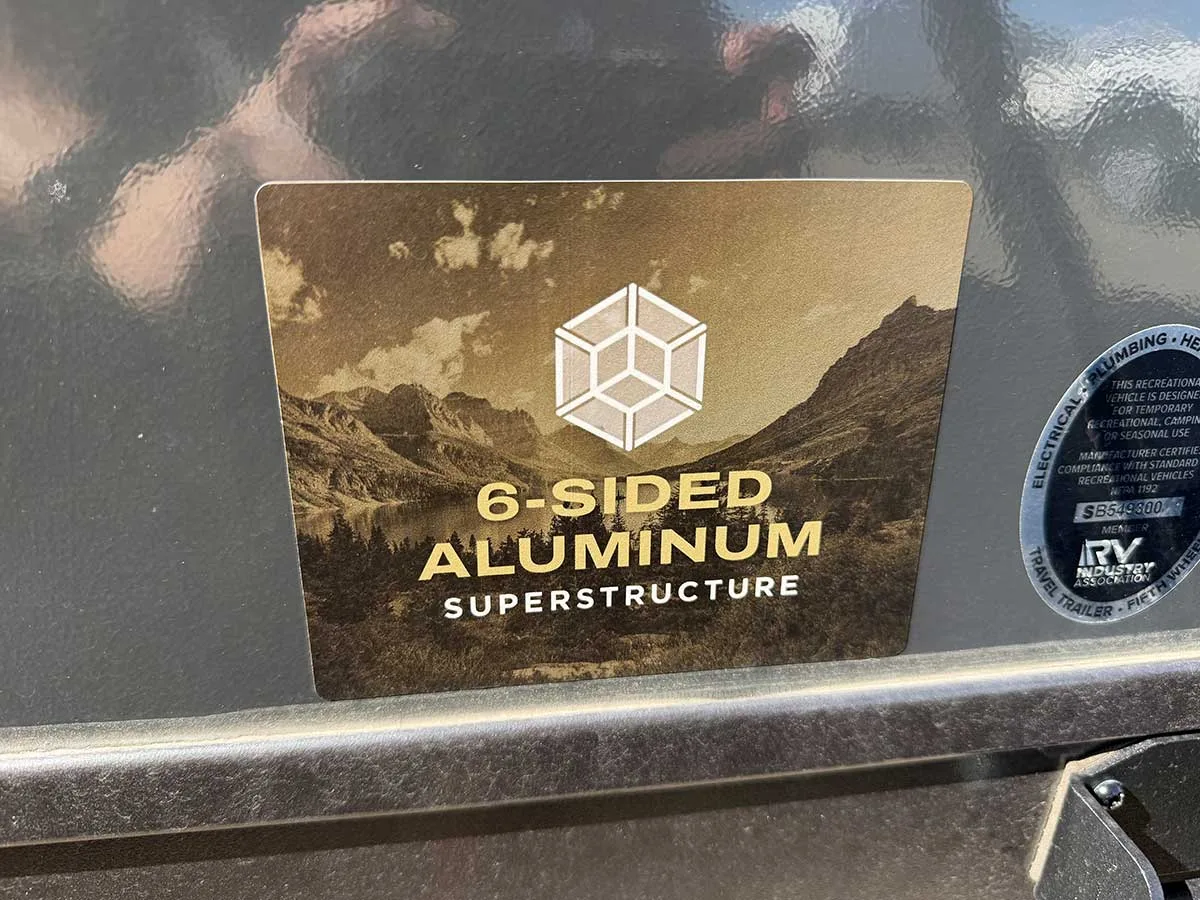

• Aluminum frame and composite walls, so no wood to rot if a seal ever leaks.
• Heated tanks and radiant foil for cold nights in Flagstaff or the White Mountains.

What I’d want you to know

• Only 1,434 lbs of cargo capacity for a trailer that sleeps eight. Tow with the fresh tank empty.
• The Murphy bed takes over the living room when it’s down.
• The main bed and the bathroom are at opposite ends.
• One AC will struggle in a Phoenix summer afternoon.
• The 29-gallon gray tank limits how long a family can boondock.
• Battery isn’t specified. Ask exactly what’s included before you sign.
• It’s too much trailer for a Ranger, even though the tow rating looks close.

What to check when you see a 2509S in person

1. Work the Murphy bed yourself. Put it down and back up twice. Whoever will do it every night should try it, latches and pin included.
2. Bring the slide in and walk the aisle. Make sure you can reach the bathroom, fridge and bunks with the slide closed for a quick roadside stop.
3. Sit in both bunks. Check head room in the lower bunk and whether your kids can climb safely to the top one.
4. Open the outside door under the bunks. See what fits: bikes, chairs, a cooler.
5. Stand in the shower. Check head height and how much elbow room you have.
6. Do the night walk. Lie on the Murphy bed, then walk to the bathroom. Picture the kids asleep in the bunks.
7. Read the yellow weight sticker. It shows that exact trailer’s UVW and cargo capacity, which can differ from the brochure.
8. Check the tires. Look at the sidewall load range and the four-digit date code.
9. Ask what battery is installed. Type and size make a big difference with a 12-volt fridge.

How the 2509S compares to other bunkhouses I sell

2026 specs from Forest River and Winnebago data as published by RVGuide, RV Wholesalers and dealer spec sheets.

The Mini Lite 2520BH is the one I’d compare first. Same length and tanks, but it trades the Murphy bed for a private front bedroom with a door, sleeps six instead of eight, and has a higher 7,580-lb GVWR. That pushes the 2.7L F-150 out of the comfortable range.

The R-Pod RP-203 uses the same idea, a Murphy bed plus bunks, with a 6,084-lb GVWR. It’s lighter, but the fresh tank is 30 gallons instead of 54.

If your tow vehicle can’t handle the 2509S, the Geo Pro G20BH and Micro Minnie 2100BH are where I’d look next. You give up sleeping spots and tank size to get a trailer under 5,500 lbs GVWR. You can browse the whole Rockwood lineup on the site.

2027 models of the 2509S are already showing up at dealers. If you’re comparing a 2026 and a 2027, check both weight stickers, since small changes can shift the numbers.

What to send me if you’re shopping for a 2509S

• A photo of your truck’s door-jamb payload sticker
• Your truck’s year, engine and whether it has a tow package
• How many people and pets usually travel with you
• Where you camp most: campgrounds, the Valley, high country or public land
• Whether you’re trading a truck or trailer

Text me or book a video walkaround, and I’ll show you the 2509S and run the numbers for your truck.
